Glass Laser Sandblasting Machine
Glass Laser Sandblasting is a digital processing equipment that integrates advanced fiber laser technology, precision three dimensional motion control and intelligent software system. It is designed for non contact non wearing, permanent surface sandblasting and internal three dimensional engraving of transparent brittle materials such as mirrors, glass, crystal acrylic, etc. and is a revolutionary alternative to traditional sandblasting and chemical etching processes.
COMPARISON BETWEEN LASER TECHNOLOGY AND TRADITIONAL PROCESSES
SANDBLASTING COMPARISON
| Laser Sandblasting (Modern Process) | Physical Blasting (Conventional Process) | |
|---|---|---|
| Processing Method | Contact, digitization, CNC control, no tool contact. | Contact, physical method, abrasive direct impact on the surface. |
| Machining Accuracy | Extremely high, down to the micron level, can complete ultra-fine patterns, gradients, QR codes. | Lower, the blasted abrasive is diffusive, and the pattern edges have a "frayed" or "feathering" effect. |
| Pattern Customization | Extremely powerful, software-controlled, can easily realize the rapid change of any complex graphics, photos, and text. | It is weak, and it needs to be made of high-density materials (such as rubber and metal) to make solid protective films, which has poor support for complex and fine patterns. |
| Materials & Consumables | No chemical/physical consumables | Consumes abrasives (such as grit), protective film, air compressor energy, abrasives have wear and recycling problems. |
| Environmental Friendliness | There is no wastewater, exhaust gas, and waste residue, and the working environment is very clean. | Generate a large amount of dust (requires efficient dust removal equipment), make a lot of noise, and waste abrasives need to be treated. |
| Operation and Safety | Safe, computer-operated, no direct chemical or physical hazards, but laser protection should be taken care of. | It is more dangerous, high noise and high dust, and you need to wear professional dust masks, earplugs and protective clothing. |
| Finished Product Effect | White matte, with a strong sense of layering (adjustable grayscale), but slightly dry to the touch, which is a "carved" effect. | The texture is rough, grainy, and opaque, which can control the roughness and is the effect of "beating". |
| Suitable For The Scene | 1. High precision, personalized customization (logo, pattern, photo) | 1. Thicker glass, simple pattern, or monolithic sandblasting |
| 2. Ultra-thin/fragile glass | 2. Heavy glass and craft glass for construction | |
| 3. Small batch and multi-variety production | 3. Decoration that does not require high precision |
Glass Laser Equipment
Technical Parameters

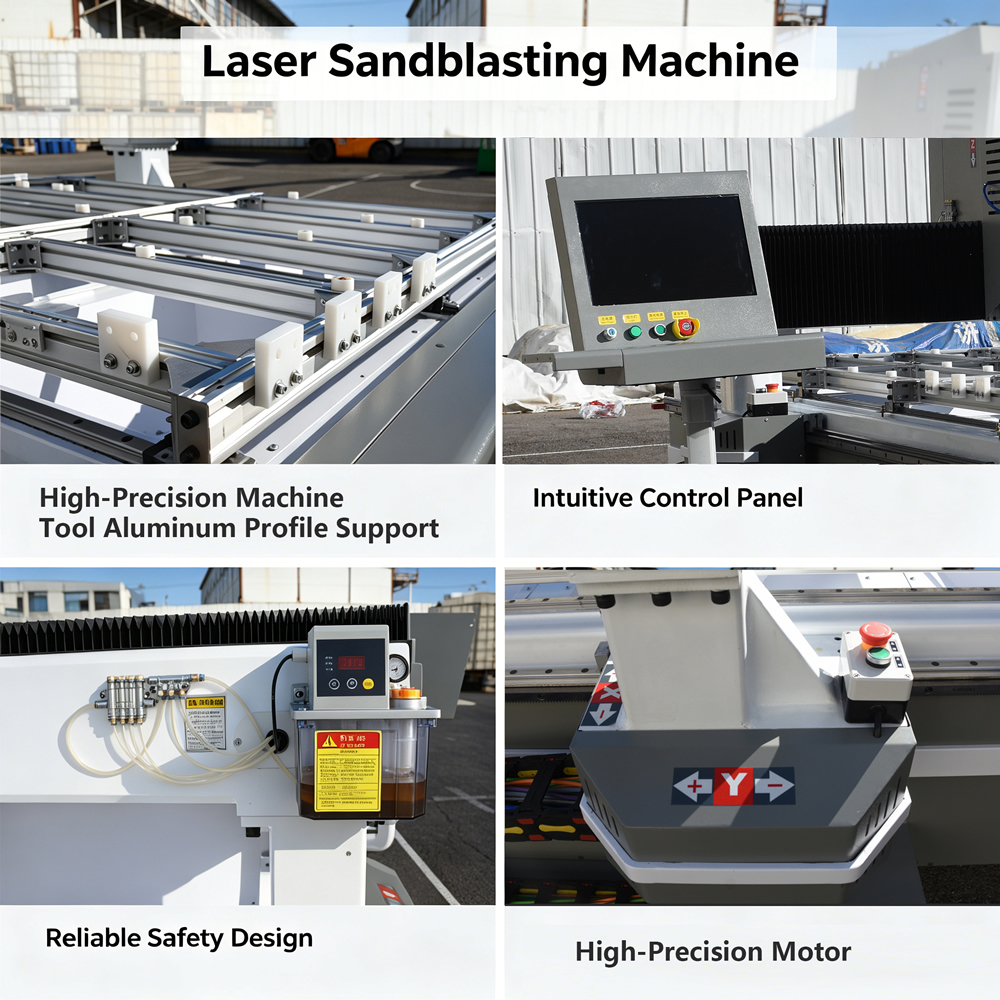

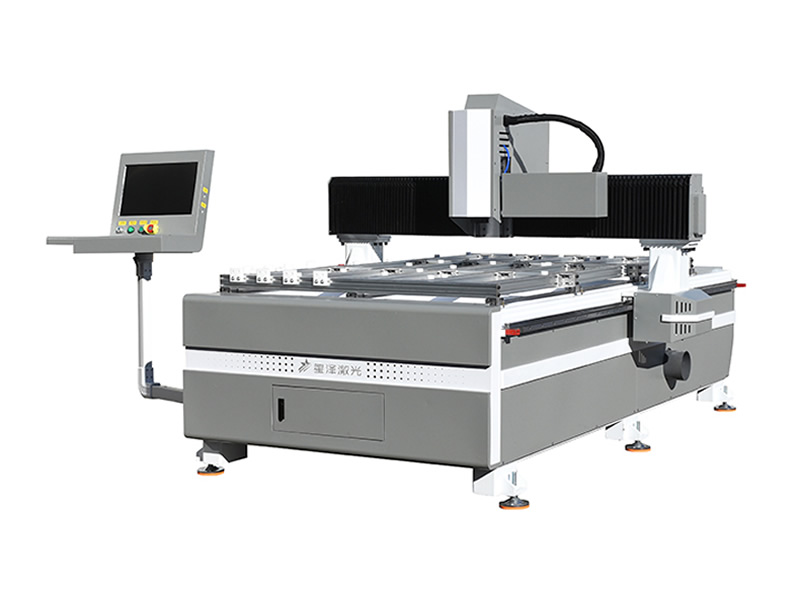

Glass Laser Sandblasting Machine
| Structural type | Gantry paving type / gantry side hanging type (optional) |
|---|---|

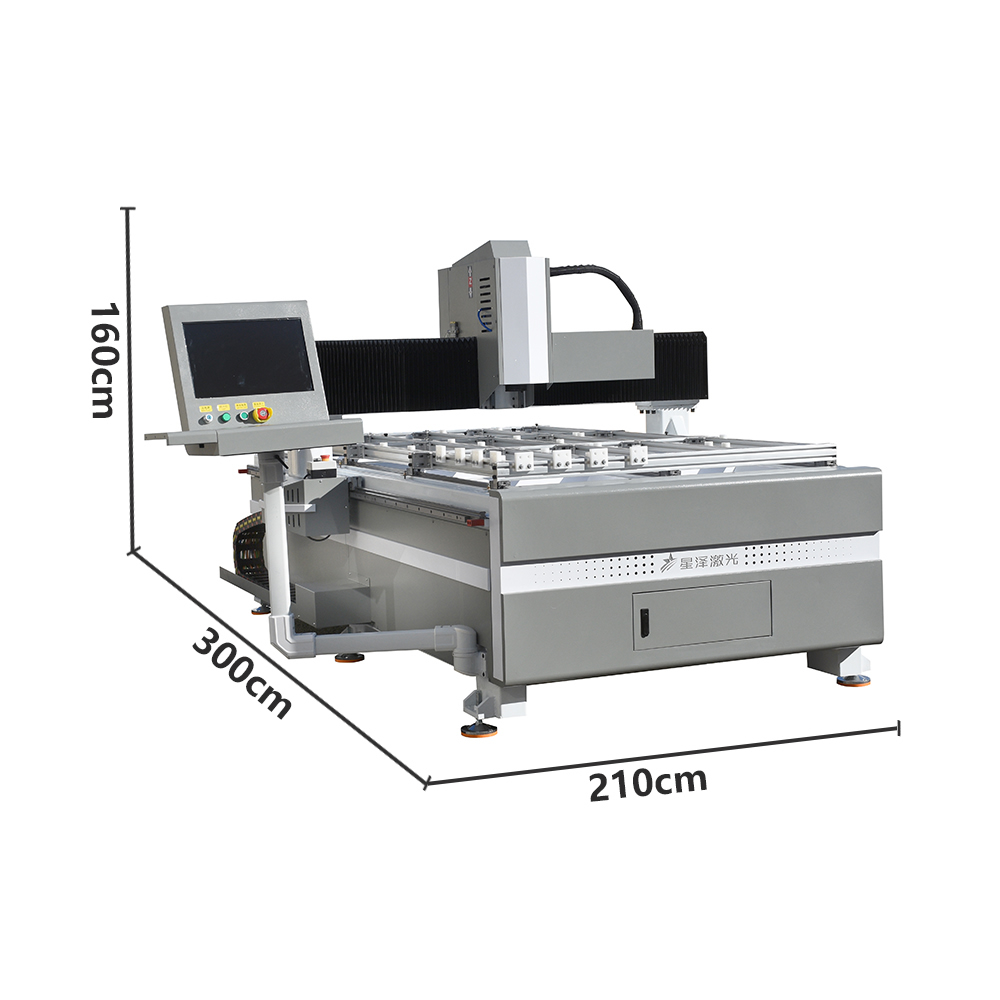

| Machine overall size | 2100*3800*1300mm (or customized) |
| Platform size | 1300*2500mm (or customized) |
| Effective processing size | 1200*2400mm (or customized) |
| Laser output power | 140W/200W/250W |
| Cooling system | Water cooling |
| Total power of the machine | 3500W |
| Repeat positioning accuracy | ±0.05mm |
| Working power supply | AC 220V/50Hz (customized on demand) |
| Seamless sandblasting function | Achieve sandblasting, marking and film removal processes for straight lines, strips, rings, squares and various irregular patterns on mirror glass or clear glass. |
| The drilling function | The equipment can drill round holes, square holes and some irregular-shaped holes within a diameter of 60mm-100mm. |
| Automatic dust absorption function | Optionally configured with automatic / follow-up vacuum structure, can quickly clean and absorb cut powder at any time, clean and environmentally friendly. |
| Operating environment | Windows10 |
Why Choose SENZED
Extensive Industry Experience
We have served thousands of enterprises and built a cross-industry case library, which is our invaluable asset for tackling any new challenges.
Expert Pre-sales Support
We provide complimentary sample testing, with engineers delivering detailed cleaning test reports and process solutions. Our data-driven approach ensures visible results.
Industry Customized Process Package
We do more than just sell equipment—we deliver 'proven process solutions.' For different industries, we provide customized process parameter packages validated through extensive experimentation, ensuring customers can 'get started and deliver results immediately.'
Excellent Stability And Durability
Our laser glass equipment utilizes high-quality components and materials. These components undergo rigorous quality control processes for testing and validation. Consequently, they exhibit efficient cleaning capabilities, stable performance, and reliable operation.
Glass Laser Equipment Applications
Laser glass sanding

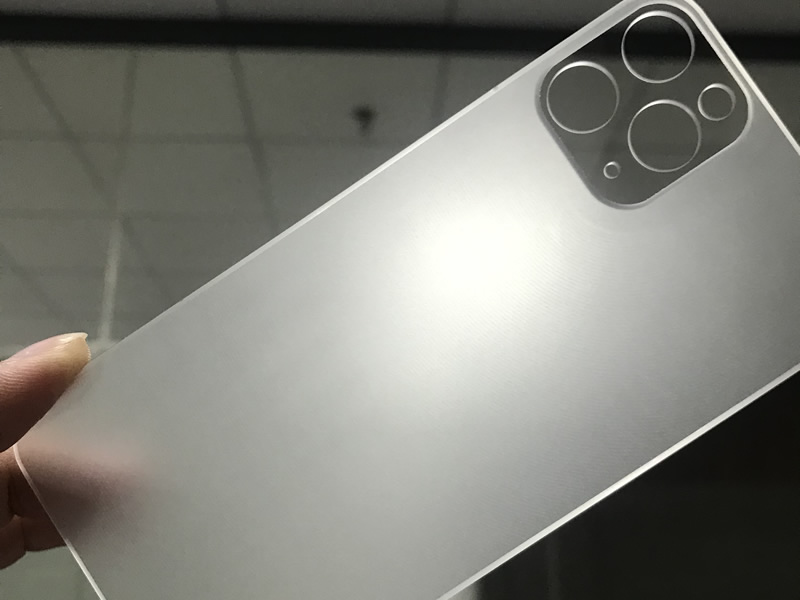

Consumer Electronics Glass (Mobile Phone / Watch / Tablet Cover)
Matte edges of the cover, anti-glare AG face, anti-fingerprint pretreatment, and camera protector soft light.
Advantages: High precision, no chipping, touch surface friendly

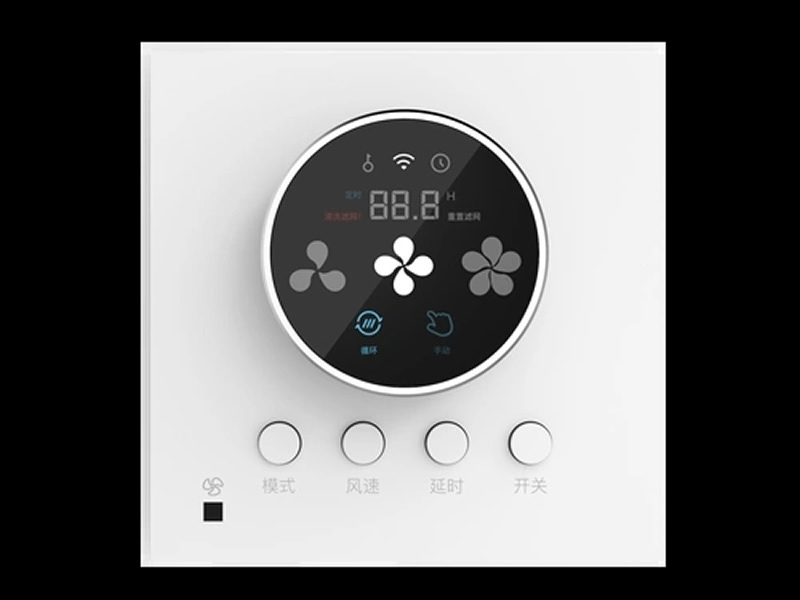

Appliance glass panels (refrigerators / air conditioners / washing machines / hoods)
The touch button light transmission area is matte, the panel LOGO, gradient matte surface, and the display area is anti-glare.
Features: one-time forming, high efficiency, scratch and wear resistance

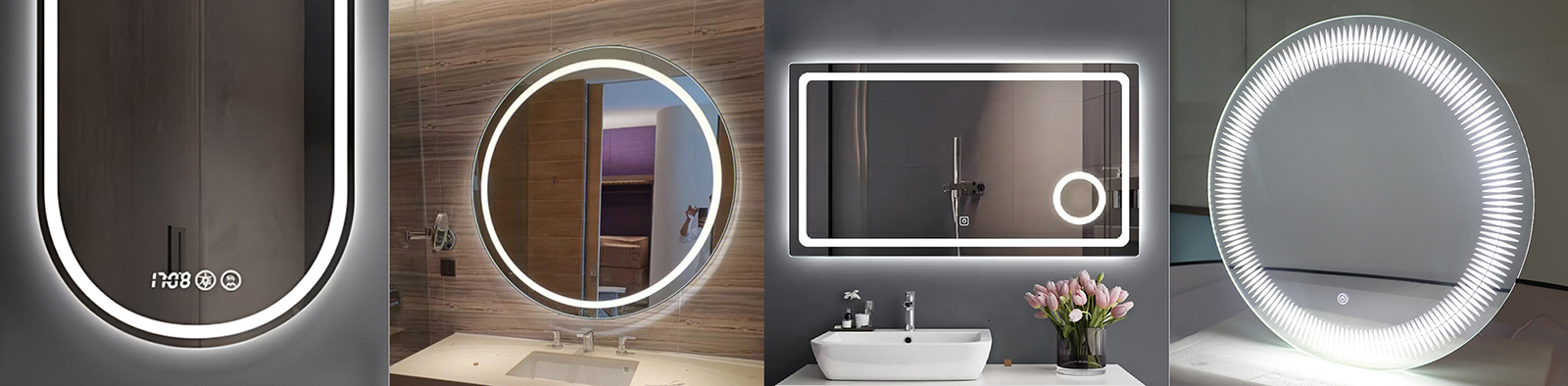

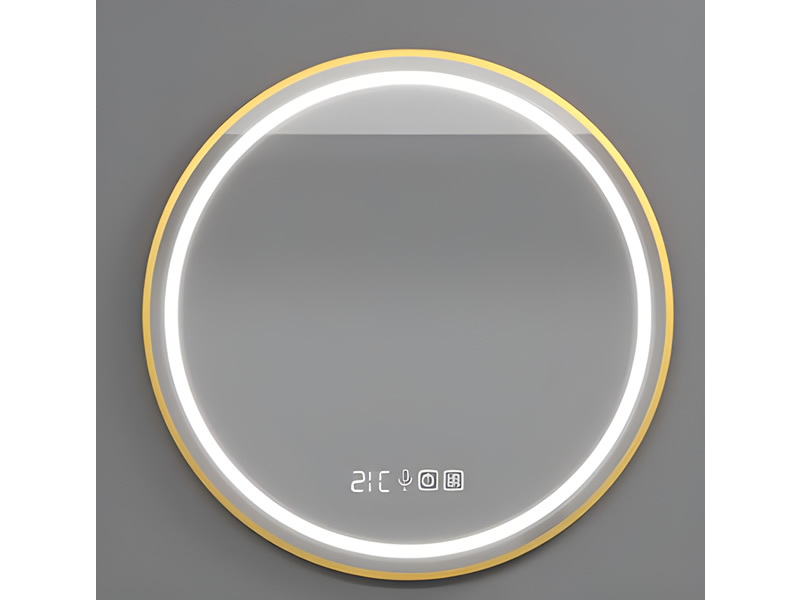

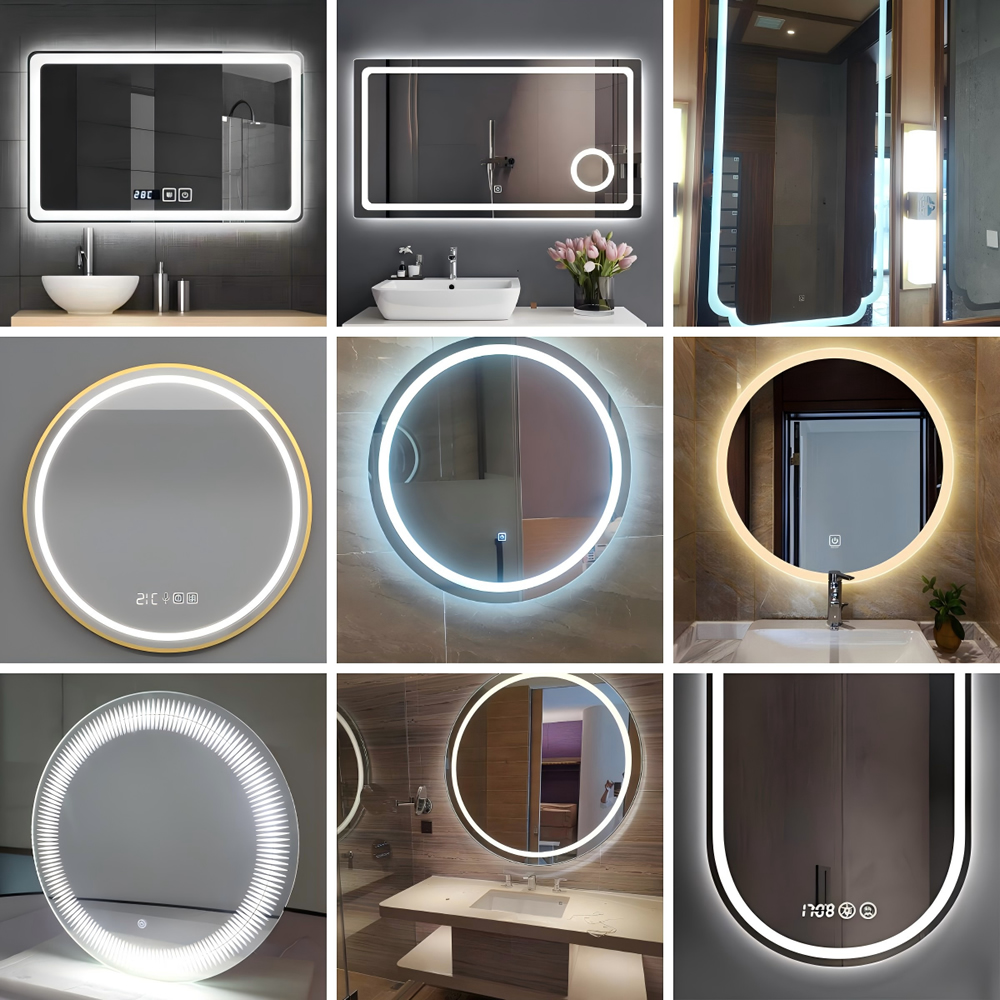

Smart Bathroom Mirror / Makeup Mirror (Popular Applications)
Display area / defogging area matte, light guide light guide matte, touch button area (sanding + film removal integrated).
Advantages: moisture-proof, no effect, no consumables

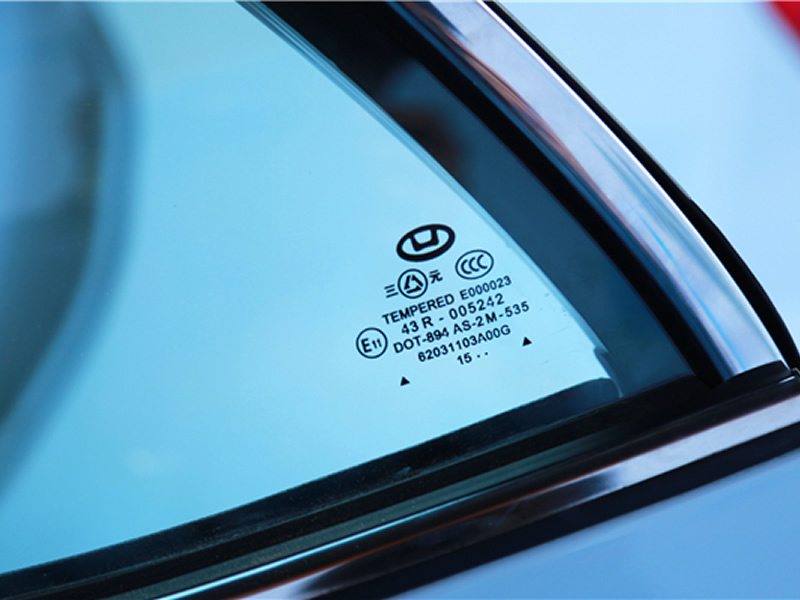

Automotive Glass (Front / Side Window / Sunroof / Interior)
The rain zone is matte, the sunshade belt, gradient matte, and the car logo and interior central control screen are anti-glare.
Advantages: No stress, no impact on glass strength
Architectural / Decorative / Shower Room Glass
Curtain walls, partitions, doors and windows privacy frosting, shower room full sand/waistline/pattern, entrance and screen art texture.
Advantages: environmental protection and dust-free, any customized pattern

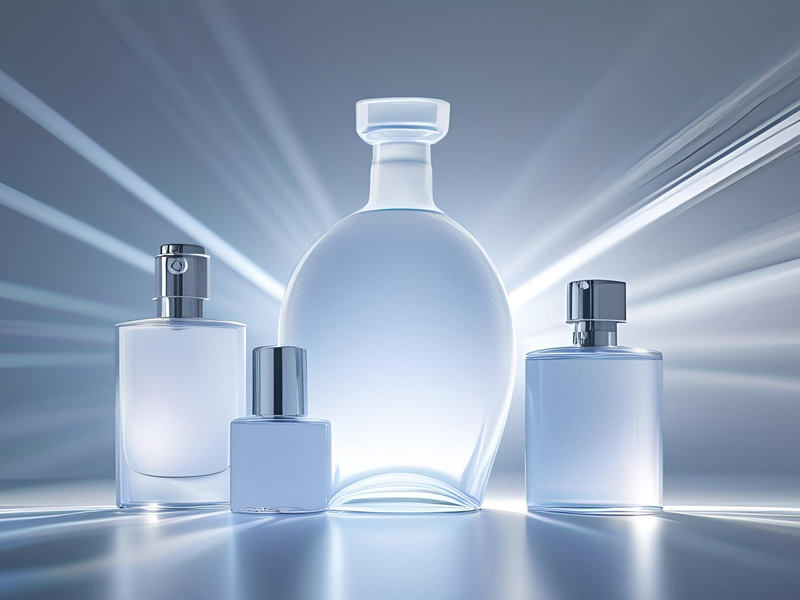

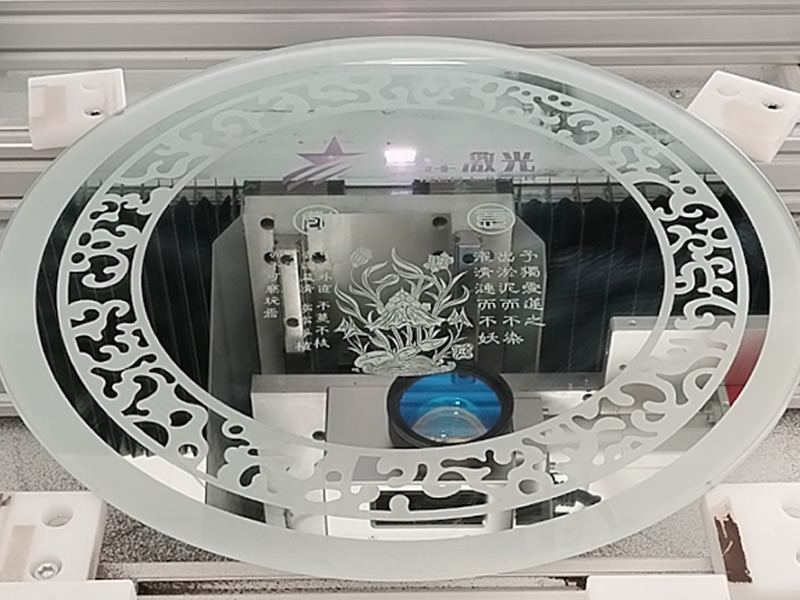

Crafts / Cosmetic bottles / Wine bottles / Gift glass
Applications:The bottle body is gradient frosted, LOGO, pattern, text, high-end texture matte effect.
Advantages: strong three-dimensional sense, no color fade, high-end beauty
How Much Does a Glass Laser Equipment
The prices of glass laser machines depend on their power, configuration, and intended application.
Glass laser sandblasting machinesg from $20000 to $50000.
Glass laser drillng machinesg from $10000 to $70000.
Glass laser cutting machinesg from $50000 to $120000.
Choosing the right model can balance your budget with your specific cleaning requirements. If you are unsure which model is most suitable for your needs. please don't hesitate to contact us. Our expert team will provide tailored recommendations and assist you in selecting the most appropriate laser cleaning solution.
FAQs About Glass Lasers Machines
FAQs About Glass Lasers Sandblasting Machine
What are the main applications of this machine?
It is widely used for smart mirrors, decorative glass, lighting glass, and logo engraving. Suitable for both batch production and customized small orders.
Can this machine replace traditional sandblasting?
Yes. Laser sandblasting requires no consumables, produces no dust, and allows flexible pattern changes. It’s ideal for high-end mirror processing and artistic glass.
How deep can the sandblasting go?
The depth is adjustable. It supports light frosting, deep texture patterns, and embossed logo effects.
FAQs About Glass Lasers Drilling Machine
What is the maximum working area of this machine?
The standard platform size is 600mm × 600mm, referring to the maximum X/Y travel range of the laser head. Larger sizes can be customized based on requirements.
What is the range of hole diameters it can drill?
The machine supports drilling diameters from 1mm to 100mm, suitable for through holes, blind holes, round, square, and simple polygonal shapes.
What glass thickness can it process?
The machine supports thicknesses from 0.1mm to 19mm, but the most common range in actual production is 2mm to 8mm flat glass.
FAQs About Glass Lasers Cutting Machine
What are the advantages of laser cutting over waterjet or CNC?
Laser cutting is cleaner and more efficient. It requires no water or abrasives, produces finer cuts, and delivers better precision—especially suitable for complex and delicate shapes.
How is the edge quality after cutting? Does it need polishing?
The cut edges are smooth and clean. In most cases, no post-processing or polishing is needed, and the glass can go directly into tempering or laminating.
What platform and configuration options are available?
We offer several models to meet different production needs:
– Single-platform laser cutting machine
– Single-platform cutting + breaking machine (with 200W CO₂ laser breaking system)
– Dual-platform laser cutting machine (one side cutting, one side loading/unloading)
– Dual-platform cutting + breaking machine (metal tube laser; one cutting head serves two platforms, alternating between cutting and breaking)
